Características:

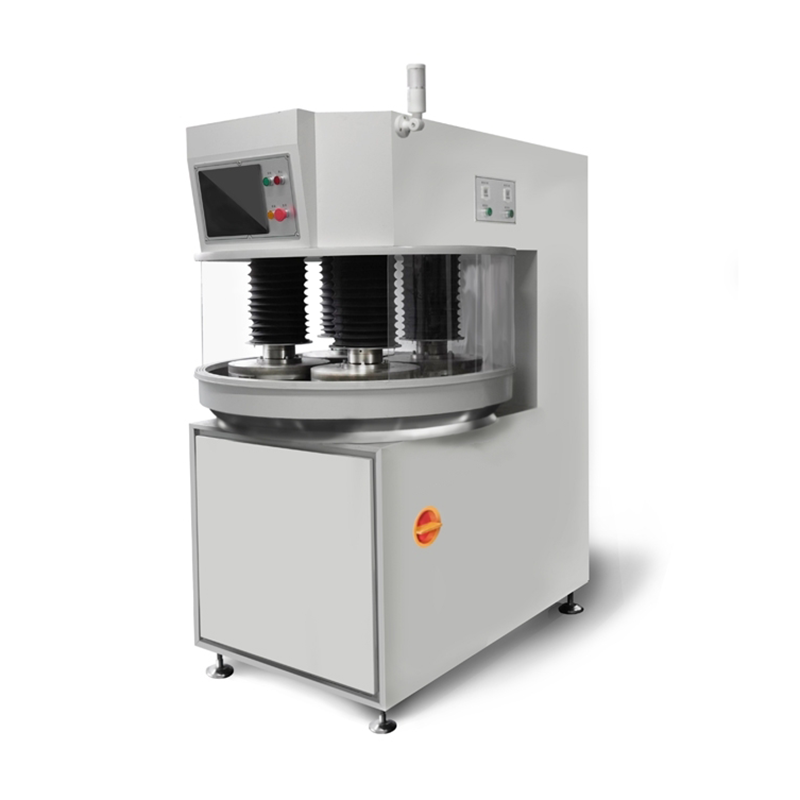

1. This equipment is a single-sided precision grinding equipment, which adopts advanced mechanical structure and control method, with high grinding efficiency and stable operation.

2. The whole machine adopts PLC+touch screen control system, which is simple and convenient to set equipment parameters and operate, and has high system stability.

3. The main motor adopts variable frequency speed control to realize soft start and soft shutdown of the main machine, reduce the impact of equipment operation, and reduce workpiece damage.

4. The workpiece grinding pressure adopts cylinder pressurization, and the closed-loop control of pressure is realized through electrical proportional valve control to ensure extremely high pressure accuracy and stability.

5. The upper pressure plate adopts active drive mode to ensure the uniformity of grinding processing at each station under the premise of ensuring the product grinding rate.

6. Both the grinding plate and the upper pressure plate are equipped with cooling water cooling function, which can reduce the deformation of the grinding plate surface while ensuring the maximum efficiency of the grinding fluid.

7. The equipment comes with a disc finishing machine, which can ensure the disc surface flatness of 0.01mm after disc finishing.

Especificaciones:

Model	HN-610	HN-700	HN-910
Grinding disc spec.	Ø610*160*12.7mm	Ø700*160*12.7mm	Ø910mm
Workpiece disc dia.	Ø200mm	Ø305mm	Ø360mm
Workpiece disc pressure	30~120kg	30~150kg	30~150kg
Pressure method	Cylinder pressurization	Cylinder pressurization	Cylinder pressurization
Working air pressure	0.4-0.6MPa	0.4-0.6MPa	0.4-0.6MPa
Workpiece disc speed	5·60rpm（max）	5·60rpm（max）	5·60rpm（max）
Polishing disc speed	0-100rpm	0-100rpm	100rpm（max）
Main motor power	4KW/380V	4KW/380V	7.5KW/380V
Pressure plate motor power	0.4KW/380Vx4	0.4KW/380Vx4	0.4KW/380Vx4
No. of machine stations	4 pcs	4 pcs	4 pcs
Dimension	1200x750x2050mm	1200x1700x2300mm	1650x1150x2200mm
Weight	1050KG	2000KG	2300KG
